SimpleLSTM on CAMELS-US: Training Results

This document presents the training results of a standard LSTM model on the CAMELS-US dataset for streamflow prediction.

Experiment Overview

  • Model: SimpleLSTM neural network
  • Dataset: CAMELS-US (671 basins)
  • Training Period: 1980-01-01 to 2004-12-31 (25 years)
  • Validation Period: 2005-01-01 to 2009-12-31 (5 years)
  • Test Period: 2010-01-01 to 2014-12-31 (5 years)

Model Configuration

Architecture

1
2
3
4
5
model_hyperparam = {
    "input_size": 30,      # 7 time-varying + 23 static features
    "output_size": 1,      # Streamflow prediction
    "hidden_size": 128,    # LSTM hidden units
}

Total Parameters: ~133K trainable parameters

Input Features

Time-Varying Features (7)

  • Precipitation (mm/day)
  • Daylight duration (hours)
  • Solar radiation (W/m²)
  • Maximum daily temperature (°C)
  • Minimum daily temperature (°C)
  • Vapor pressure (Pa)
  • Potential evapotranspiration (mm/day)

Static Catchment Features (23)

  • Topography: area, elevation, slope, gauge location
  • Climate: precipitation mean, PET mean
  • Geology: geology classes, porosity, permeability
  • Vegetation: forest fraction, LAI, land cover
  • Soil: root depth, soil depth, porosity, conductivity, water content
  • Administrative: HUC-02 classification

Training Configuration

Parameter Value
Optimizer Adam
Learning Rate 0.0005
LR Scheduler ExponentialLR (factor: 0.95)
Loss Function RMSESum
Batch Size 256
Total Epochs 50
Early Stopping Enabled (patience: 5)
Forecast Length 365 days
Device GPU (CUDA)

Training Progress

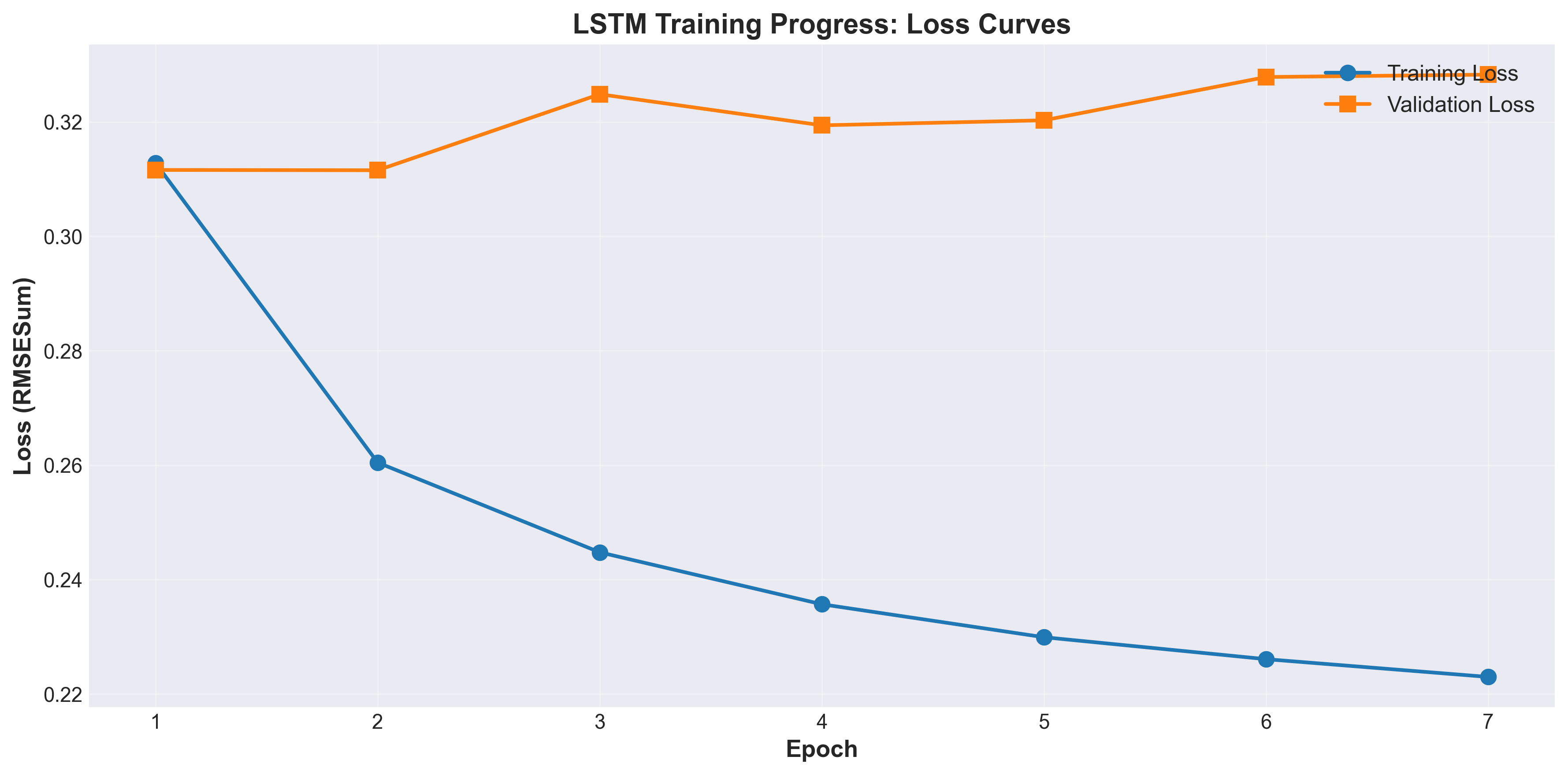

Loss Curves

LSTM Training and Validation Loss

Training Loss decreased steadily from 0.313 (Epoch 1) to 0.223 (Epoch 7), showing consistent improvement with the largest drop of 16.7% between Epochs 1-2.

Validation Loss showed overfitting signs after Epoch 2, where it reached minimum (0.3115) and then increased to 0.328 by Epoch 7 while training loss continued decreasing.

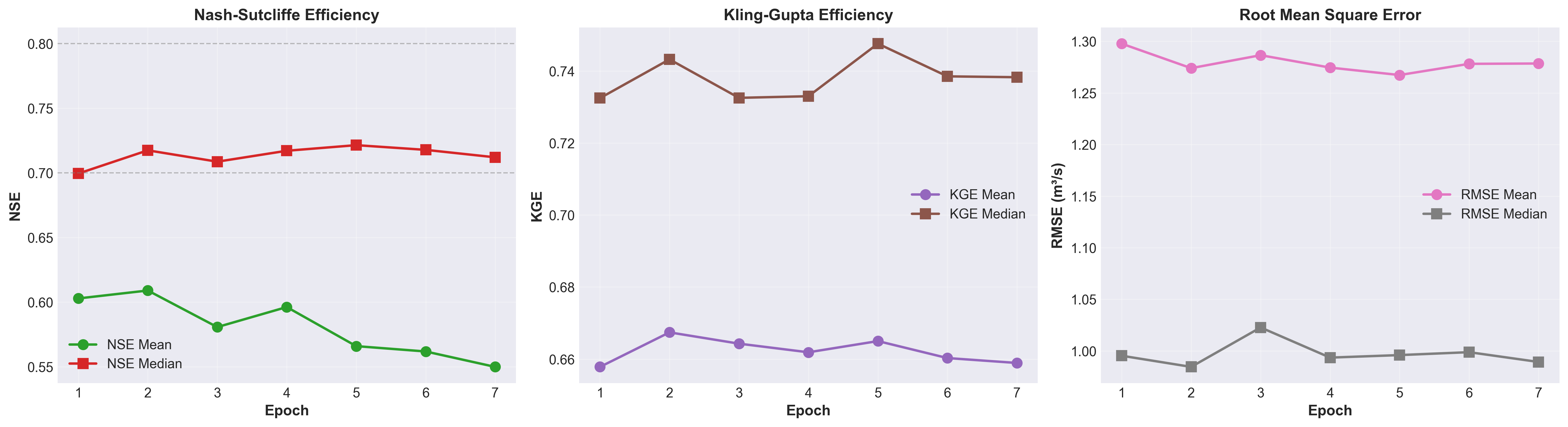

Validation Metrics by Epoch

LSTM Validation Metrics

NSE (Nash-Sutcliffe Efficiency): - NSE Median peaked at 0.7215 (Epoch 5), indicating good performance - NSE Mean remained around 0.55-0.61 across epochs - Higher median than mean suggests good performance on majority of basins

KGE (Kling-Gupta Efficiency): - KGE Median peaked at 0.7476 (Epoch 5), indicating good performance - KGE Mean: 0.658-0.667, more stable than NSE throughout training

RMSE (Root Mean Square Error): - RMSE Median lowest at 0.985 m³/s (Epoch 2) - Both metrics showed minimal variation across epochs (< 5%)

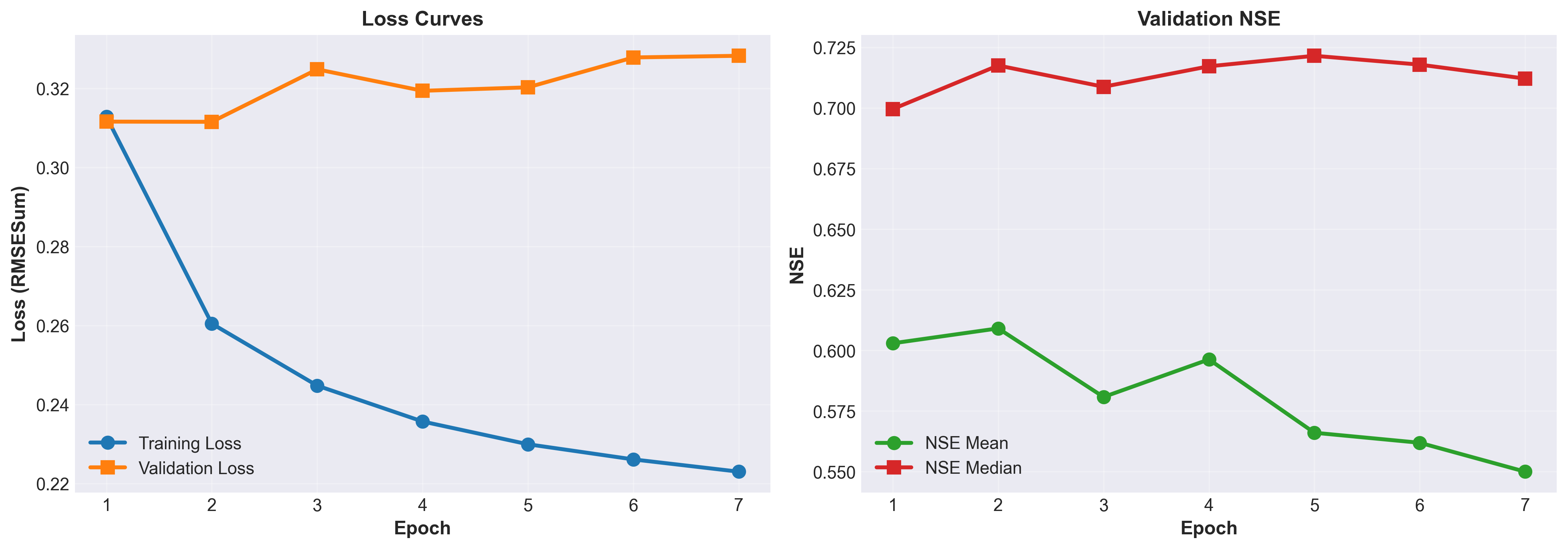

Training Overview

LSTM Training Overview

Figure: Combined view of training/validation loss (left) and validation NSE metrics (right).

Key Observations

  1. Best Validation Performance: Epoch 5 achieved optimal NSE/KGE median scores (NSE: 0.7215, KGE: 0.7476)

  2. Overfitting Pattern: Training loss decreased continuously (29% reduction) while validation loss increased after Epoch 2 (5% increase), indicating model achieved best generalization between Epochs 2-5

  3. Early Stopping: Training stopped at Epoch 7 (patience=5). Validation loss minimum at Epoch 2, but NSE/KGE metrics better at Epoch 5, demonstrating importance of using multiple metrics for model selection

  4. Model Convergence: Loss change rate decreased from 16.7% (Epoch 1→2) to 1.4% (Epoch 6→7), with NSE and KGE medians stabilizing in 0.71-0.75 range

Note: Training stopped at Epoch 7 due to early stopping.

Test Results (2010-2014)

Performance Statistics (669 valid basins):

Metric Mean Median Std 25% 75% Min Max
NSE 0.523 0.717 1.584 0.543 0.808 -29.65 0.936
KGE 0.629 0.721 0.418 0.547 0.827 -5.78 0.938
RMSE 1.248 1.018 0.996 0.588 1.616 0.025 8.024

Performance Distribution

  • Excellent (NSE > 0.8): ~25% of basins (169 basins)
  • Good (0.7 < NSE ≤ 0.8): ~25% of basins (168 basins)
  • Satisfactory (0.5 < NSE ≤ 0.7): ~25% of basins (168 basins)
  • Unsatisfactory (NSE ≤ 0.5): ~25% of basins (164 basins)

Median NSE of 0.717 indicates strong performance across the majority of catchments.

Top Performing Basins

Basin ID NSE RMSE KGE Region
01013500 0.856 0.699 0.907 Northeast
01022500 0.847 1.011 0.798 Northeast
01030500 0.831 1.018 0.717 Northeast
01031500 0.827 1.355 0.713 Northeast
01057000 0.855 1.143 0.841 Northeast

Key Findings

  1. Strong Generalization: Median NSE of 0.717 demonstrates robust performance across diverse catchments
  2. Efficient Training: Model converged in 7 epochs (~47 minutes total)
  3. Overfitting Detection: Validation loss increased after Epoch 2, but NSE/KGE metrics continued improving until Epoch 5
  4. Basin Heterogeneity: Wide performance range reflects the diversity of hydrological conditions across CAMELS-US

Output Files

Results are saved in results/lstm_results/camels_all/:

  • best_model.pth: Model checkpoint with best validation performance
  • metric_streamflow.csv: Per-basin evaluation metrics (671 rows)
  • epochbest_model.pthflow_obs.nc: Observed streamflow (NetCDF)
  • epochbest_model.pthflow_pred.nc: Predicted streamflow (NetCDF)
  • dapengscaler_stat.json: Normalization statistics
  • *.json: Complete configuration snapshot

How to Reproduce

1. Setup Environment

1
2
3
git clone https://github.com/OuyangWenyu/torchhydro.git
cd torchhydro
uv sync --all-extras

2. Configure Data Path

Create ~/hydro_setting.yml:

1
2
3
4
local_data_path:
  root: 'D:/data'
  datasets-origin: 'D:/data'
  cache: 'D:/data/.cache'

3. Run Training

1
python examples/lstm_camels_example.py

Modify the example script to train on all 671 basins by updating the gage_id parameter.

Evaluation Metrics

Nash-Sutcliffe Efficiency (NSE)

$$\text{NSE} = 1 - \frac{\sum_{t=1}^{T}(Q_{\text{obs}}(t) - Q_{\text{sim}}(t))^2}{\sum_{t=1}^{T}(Q_{\text{obs}}(t) - \bar{Q}_{\text{obs}})^2}$$

  • Range: (-∞, 1], optimal = 1
  • Interpretation:
  • NSE > 0.8: Excellent
  • 0.7 < NSE ≤ 0.8: Good
  • 0.5 < NSE ≤ 0.7: Satisfactory
  • NSE ≤ 0.5: Unsatisfactory

Kling-Gupta Efficiency (KGE)

$$\text{KGE} = 1 - \sqrt{(r - 1)^2 + (\alpha - 1)^2 + (\beta - 1)^2}$$

Where $r$ is correlation, $\alpha$ is variability ratio, $\beta$ is bias ratio.

  • Range: (-∞, 1], optimal = 1
  • Interpretation: KGE > 0.5 considered acceptable

Root Mean Square Error (RMSE)

$$\text{RMSE} = \sqrt{\frac{1}{T}\sum_{t=1}^{T}(Q_{\text{obs}}(t) - Q_{\text{sim}}(t))^2}$$

  • Unit: m³/s
  • Lower is better

Further Resources

Last Updated: December 2025
